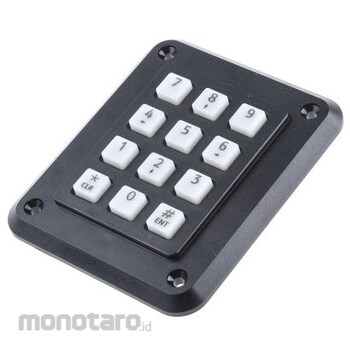

STORM Storm keypad 3 x 4

Sebelum PPN:
Rp1.699.900 - Rp4.599.900
Spesifikasi
ROHS Directive (Corresponding to 10 Substances)Correspondence

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature
Specification
Keypad Layout: 3 x 4 Number of Keys: 12 Keypad Output: Matrix IP Rating: IP65 Case Material: Zinc die-cast Mechanical Life (Operation Keys): 4000000 Operations Contact Material: Gold over Nickel Plating Actuator Material: Depth from zinc die-cast panel: 8mm Minimum operating temperature: -40°C Operating temperature range: -40 to +100°C 1000 series. Engraved keycap letters Gold over nickel FR4 contact substrate 4, 12, 16 key arrangement Contact Rating: 50 mA @24 V dc Contact Resistance: 100 Ω Isolation Tolerance: 500 V ac Insulation Resistance: 50 MΩ Operating Life: > 4 million operations (per key) -40 (dry) to +100 °C (operating) Back Box and Privacy Shroud available Operating Force: 180 g Contact Bounce: 5ms

Ulasan Produk

Tidak ada ulasan
