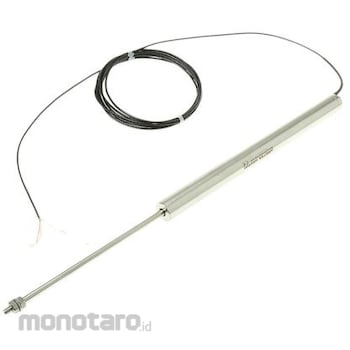

Solartron Metrology Solartron Metrology Displacement Sensor (LVDT)

Specification
Stroke: ±100mm Energizing voltage range: 10 -> 30 V dc Output voltage range: ±10 V, ±5 V, 0 -> 10 V, 0 -> 5 V Operating temperature Min: 0°C Operating temperature Max: +65°C RS Part number 7271329 is the AC version and part number 7271341 is the DC version. Solartron S-Series Displacement Transducers. The Solartron S-Series displacement sensors have a stainless steel body and IP67-rated sealing, as well as polymer bearings and a 6 mm diameter carrier. This transducer continues to operate accurately and reliably even in humid or corrosive environments. Features and Benefits Linearity: ±0.2 % Analog, DC and 4-20 mA versions 19 mm diameter stainless steel body IP67 rating Output options Large inner diameter and core air gap for easy installation Superior magnetic shielding Absolute positioning
