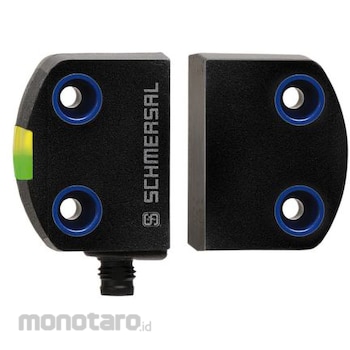

SCHMERSAL Schmersal safety switch RSS 260 series

Specification
Supply Voltage: 20.4 to 26.4 V dc Housing Material: Plastic, Thermoplastic Connection Type: M8 Switch Type: Rectangular Terminal Type: M8 Connector Series: RSS 260 IP Rating: IP65, IP67 Supply Current: 600 mA Including Actuator: None Width: 29.5mm EN ISO13849-1, IEC61508, IEC60947-5-3, EN62061. TUV, cULus. Actuator sold separately. Schmersal RSS260 non-contact safety switch. The RSS260 is a non-contact safety switch with RFID technology designed for safety circuits and used to monitor the position of movable separation safety guards. In addition to its compact design and advanced tamper resistance, this switch is suitable for removable/rotary/sliding protective equipment. The RSS260 is suitable for mounting on aluminum profiles and for various door sizes such as the popular plexiglass doors/panels. Depending on the door and the direction of door movement, the right combination of sensors and actuators for the application can be achieved. You can use the teach function or code individually as many times as you want, even if you code as you like. RFID technology makes it highly flexible yet reliably tamper-proof. Thermoplastic enclosure Superior tamper resistance with RFID technology Compact, delicate and elegant design Easy to install with no additional angles required Suitable for general purpose applications thanks to different targets for common mounting situations Universally coded for repetitive use or Individually coded Safety level and diagnostics maintained even when connected in series Up to 31 sensors can be wired in series IP65, IP67 according to IEC / EN60529 Actuator Part no. 880-1845 880-1845 : Suitable for plexiglass doors, flat design, discreet appearance 880-1848 880-1848 : Suitable for sliding doors, minimum size, plexiglass embedded in
