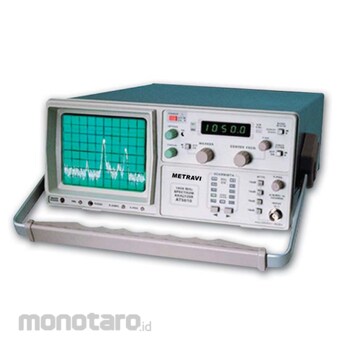

Metravi Spectrum Analyzer

Frequency range : 0.15— 1050 MHz | Center frequency display accuracy : ±100kHz | Marker accuracy : (0.1% span +100kHz) | Resolution of frequency display : 100kHz(4.5 digit LED) | Frequency scanwidth : 100 kHz/div. to 100MHz/div. in 1-2-5 steps and 0Hz/div.(Zero Scan) | Frequency scanwidth accuracy : ±10% | Frequency stability : better than 150 kHz/ hour | IF Bandwidth (-3dB) : | Resolution : 400 kHz and 20 kHz; | Video-Filter on : 4 kHz | Sweep rate : 43Hz | Amplitude range : -100dBm to +13 dBm | Screen display range : 80 dB (10dB/div.) | Reference level : -27dBm to +13 dBm (in 10dB steps) | Reference level accuracy : ±2dB | Average noise level : -99dBm (20 kHz BW) | Distortion : < -75 dBc: 2nd and 3rd harmonic | 3rd order intermod. : -70dBc (two signals > 3MHz apart) | Sensitivity : | Log scale fidelity : ±2dB (without attn.) Ref.: 250MHz | Input impedance : 50Ohms | Input connector : BNC | Input attenuator : 0 to 40 dB (4Å~10dB steps) | Input attenuator accuracy : 1dB/10 step | Max. input level : +10dBm, ±25V DC (0dB attenuation) / +20dBm, (40dB attenuation)
