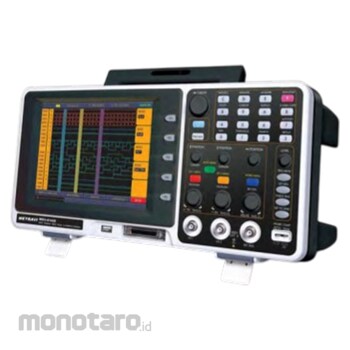

Metravi Mixed Signal Oscilloscope

Bandwidth: 100MHz | Channels: 2+1 (external) | Modes: Normal, Peak detect, Averaging | Sample Rate: 1GS/s half channel*, 500MS/s each channel | Input Coupling: DC, AC , Ground | Input Impedance: 1MΩ±2%, in parallel with 15pF±5pF | Probe Attenuation Factor: 1X, 10X, 100X, 1000X | Channel Isolation: 50Hz: 100:1 / 10MHz:40 :1 | Cursor: △V and △T between cursors | Automatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B , +Width, -Width, +Duty, -Duty | Waveform math: +, -, *, /, FFT | Waveform Storage: 4 waveforms | Typical Measurement Frequency: 1kHz square wave | Storage and call-out of waveforms | Automatic setting function provided capable of fast setting | Multiple-waveform calculation function | Built-in FFT function | Implementation of detecting the average and peak values of the waveform | Digital real-time oscilloscope | Edge, video, alternate, pulse and slope triggering function | Different continuous displaying time | Communication Ports: USB2.0, USB for file storage; RS-232 or VGA port (optional) | Logic Analyser Sample Rate: 20 S/s ～ 1GS/s | Logic Analyser Channels: 16 | Logic Analyser Max Storage: 4M/Channel, 16K(when only sampling rate is 250MS/s, 500 MS/s, 1GS/s) | Logic Analyser Bandwidth: 100MHz | Display: 8″ Coloured LCD (Liquid Crystal Display), 640×480 px, full colour TFT | Power: Mains Voltage 100～240 VAC RMS, 50/60Hz, CAT II | Fuse: 2A, T grade, 250V | Accessories: Passive probe: 2, 1.2 m, 1:1 (10:1), OL-16 LA measurement module, Software CD, USB Cable, Power Cable, User Manual | Calibration: One year is recommended for the calibration interval period
