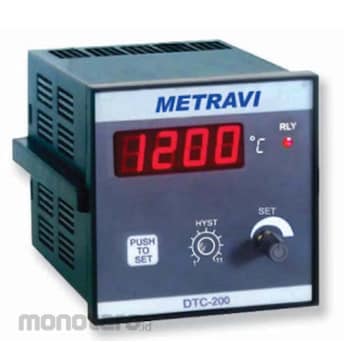

Metravi Digital Temperature Controller

Sebelum PPN:
Rp2.399.900 - Rp3.599.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
96 mm sq, with 1NO + 1NC, Single Set Point, for K, J, R, S, PT-100 (Any One)
Feature
Flush Mounting type | Sizes 96 x 96 mm sq ‘OR’ 72 x 72 mm sq | Display | 3-1/2 Digits Seven Segment Red | LED display | Cold Junction Compensation Automatic forThermocouple | Open Sensor Indication | Sensor Input J, K, R, S, T/C, PT-100 RTD, V & 4 – 20mA | Accuracy J,K 1%; R,S 0.5%; PT-100 RTD0.2%, mV, V,mA 0.1% | Hysterisis Pot 1 to 10°C for each point for ON – OFF Model | Control Action ON/OFF or Time Proportional | Control output (options available) | a. 6A or 20A, 1C/O Relay, 230V. | b. 12V DC pulse output for SSR for each set point | Single Set Point | Auxiliary Power Supply 230V Single Phase AC 50Hz
