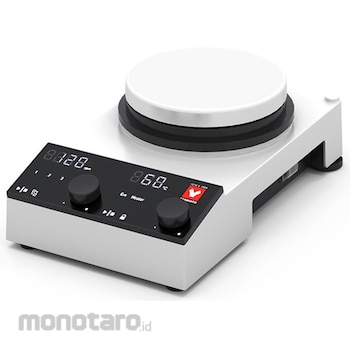

YAMATO SCIENTIFIC Magnet Mixer

Strong magnetic force allows stirring to continue even if the flask is moved.▼The magnetic stirrer with strong magnetic force can be stirred even if it is moved to the left or right or upward from the stirring table. ▼The flask that was heated in the oil bath can be stirred even if it is moved to the upper part outside the bath when heating is finished. ▼The stirring range varies depending on the shape of the stirrer and the viscosity of the sample, but the figure shows the stirring range when the load is small. ▼A step-out detection mode (detection of the stirrer detachment) that was made because it was a nice feature. ▼The stirrer may detach from the center of the container due to changes in the rotation torque and viscosity of the liquid. ▼Once detached, it will not return to its original position until the rotation is stopped. ▼When the detachment is detected, it has a function that stops the rotation once and gradually increases the rotation to encourage the detached stirrer to return. ▼Since there is a possibility of stepping out again at the same rotation speed, it restarts at a rotation speed 100 rpm lower than the set rotation speed. ▼It is designed to be safely combined with a dedicated oil bath, and to be used with the BOG/BOS series oil baths, the plate part of the MFD800/MFH800 fits into the recess at the bottom of the oil bath. ,▼Prevents the bath from moving or slipping off due to vibration. ,Abundant and convenient rotation functions,▼The operation unit is designed for simple and intuitive operation. ,▼In addition to the constant speed operation mode, the stirrer has four convenient rotation functions, including 1. Step-out detection mode (detection of stirring bar detachment), 2. Intermittent operation mode, 3. Automatic reversal mode, and 4. Slow-up mode (gradual acceleration). ,Stirring table (plate) heat-resistant and chemical-resistant design,▼Ceramic coating is applied to resist corrosion and chemicals. ,▼In addition, the MFD800 turntable, which does not have a heater, is designed to withstand a heat temperature of 310°C so that it can be used with high-temperature oil baths such as BOG/BOS. ,Options,▼Handles for lifting the aluminum block and silicone protective covers for protecting the main unit are available.
