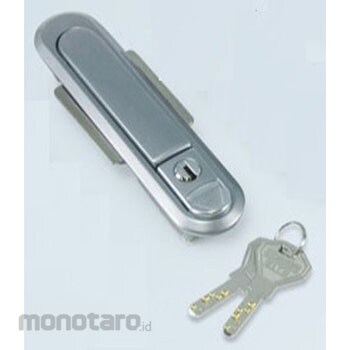

Tochigiya Flush lift handle

A flat handle that uses a lift mechanism that pulls the fasteners when the handle is stored. Since the door is tightened, it is sealed without rattling, and the shielding effect is further enhanced. The depth from the mounting surface is shallow, and effective use of space is possible. THA-409M can be used as a master key. Since it can be operated with the same keys as TL-326 and TL-347 (made-to-order), work efficiency can be improved by using them in combination.
EMI prevention shield racks for information equipment (digital devices, magnetic disk devices), control panels, railroads, vehicles, aircraft, etc. * For EMI shield racks, etc., take measures to prevent electromagnetic interference on the rack side.
* After installing the fasteners, apply anti-loosening treatment to the washer-embedded pan head machine screws. The allowable load in the compression direction should be 49N (5kgf) or less at the 43mm position on the horizontal side from the center of rotation of the handle.
