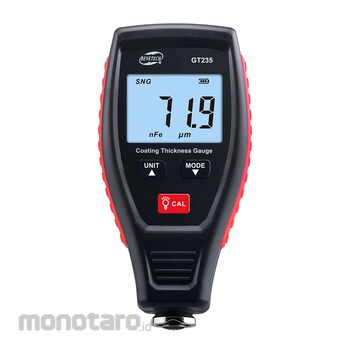

Benetech Coating Thickness Gauge Tester
#Grup produk P115833995
Spesifikasi
| Dimensions (mm) | 62x27x121.5 |
|---|---|
| Measurement Range (m/l) | 70.8 |
| Measurement Range (mm) | 1.8 |
| Measurement Range (μm) | 0 ~ 1800 |
| Measuring Error (μm) | ≤150, ±5μm >150 μm, ±(3%H+1μ) |
| Minimum Curvature Radius of Concave Magnetic Substrate (mm) | 11 |
| Minimum Curvature Radius of Convex Magnetic Substrate (mm) | 2 |
| Minimum Diameter of Magnetic Metal Substrate (mm) | 12 |
| Minimum Diameter of Non-magnetic Metal Substrate (mm) | 50 |
| Minimum Thickness of Magnetic Metal Substrate (mm) | 0.5 |
| Minimum Thickness of Non-magnetic Metal Substrate (mm) | 0.5 |
| Operating Humidity (%RH) | 10~95 |
| Operating Temperature Range (°C) | -20~40 (It is recommended to calibrate it again when use in different environments,especially for large temperature difference) |
| Power Supply (V) | 1.5 (2* AAA batteries) |
| Resolution | (0.1μm (<100μm), 1μm (≥100μm))/0.1mil/0.001mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This device can make a quick and effective measure- ment of the thickness of the non- metallic coating on the non-magnetic metal substrate and the thickness of the non-magnetic coating of the magnetic metal substrate, it can also automatically identify the magnetic metal substrate and non-magnetic metal substrate. It is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.
Feature
1.Measuring the thickness of non-magnetic coating on the magnetic metal substrate.2.Measuring the thickness of the non-metallic coating on the non-magnetic metal substrate.
3.Automatically identifying the non-magnetic metal substrate and magnetic metal substrate.
4.Single measurement, continuous measurement and differential measurement available.
5.Zero-point calibration, Offset Calibration and basic calibration available.
6.Metric and imperial units of measurement optional.
7.LCD backlight.
8. Automatic shutdown.
