The diaphragm uses silicone rubber with low hysteresis.
It is highly pressure resistant.
Zero adjustment can be done externally.
The wall-mounted type allows you to reverse the high-voltage and low-voltage connections by swapping the fittings on the left and right sides.
RoHS compliant.

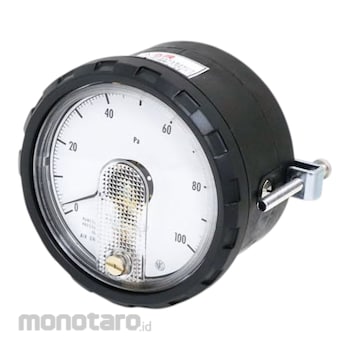

NAGANO KEIKI Differential Pressure Gauge DG85-361 Series
#Grup produk P115831030
Sebelum PPN:
Rp3.699.900 - Rp4.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | ±1.5%FS (compliant with JIS B7505-1) |
|---|---|
| Installation Method | Vertical |
| Material | Gas contact parts: (Diaphragm) Silicone rubber, (Case) Polyacetal resin, (Cover glass) Methacrylic resin, (Others) Aluminum alloy, phosphor bronze, brass, neoprene, NBR |
| Operating Temperature Range (°C) | -20 to 60 |
| Outer Diameter (mm) | Φ85 |
| Shape | Wall-mounted type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details*Not suitable for measuring fluids containing large amounts of foreign matter.
Use
This product is primarily suitable for detecting differential pressure due to pressure loss in air filters used in air conditioning systems, and is used for measuring very low pressures. It is a high-precision differential pressure meter that can be used not only as a small differential pressure meter, but also as a flow meter and micro-pressure meter.Ulasan Produk
