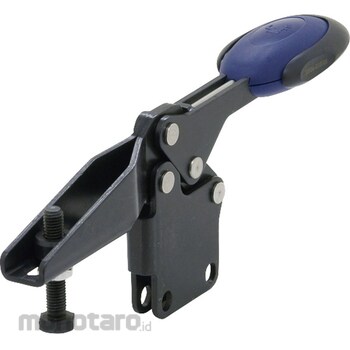

IMAO Toggle clamp Toggle clamp with safety lock, Toggle clamp TCDHSL/TCDHS TCDHS08200
#Grup produk P115825312
Spesifikasi
| Allowable Load (N) | ((From the back) F1) 2000 ((From the back) F2) 2800 |
|---|---|
| Clamp Height (mm) | 46.5 |
| Clamping power (N) | (F3)830(F4)1400 |
| H | 88.2 |
| H1 | 84.4 |
| H2 | 7 |
| L | 223.5 |
| L3 | 9 |
| Lever Load (N) | 200 |
| Movable range (°) | (Arm) 88 (Lever) 68 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Made of phenolic resin |
| l1 | 74.9 |
| l2 | 44 |
| m | M8x1.25-45L |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Lever with grip for excellent operability. - The type with safety lock is designed so that the lock functions at the clamp position. To release the lock, slide the grip cover and operate the lever, so there is no need to worry about the clamp being released due to contact, etc. - The identification mark on the hexagonal bolt head of the clamp section may protrude. Please remove the mark if necessary. - This product complies with the RoHS directive.
