The direction of rotation can be changed.
The distance between the torque pin and the shaft is long, so it can be fixed without shaking.

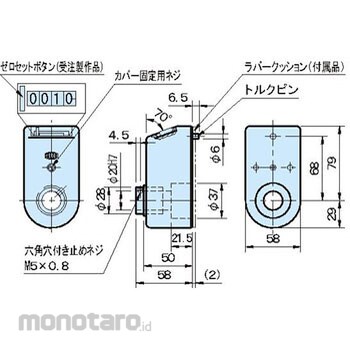

Shaft hole diameter Φ20mm (Φ12, 14, 15 and 16 are possible by using a shaft sleeve)
Character height 6mm
At startup, set it to 1/3 or less of the allowable rotation speed.
Please avoid the use of sudden acceleration and sudden stop.
If the shaft moves in the thrust (axis) direction, it cannot be used.
It is a RoHS directive compliant product.
IMAO SDP-08 Digital position indicator
#Grup produk P115819454
Spesifikasi
| Color (Housing) | Orange |
|---|---|
| Mass (g) | 700 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Reading Direction | Horizontal |
