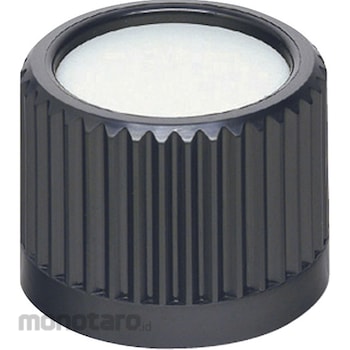

IMAO Round knob RK-N, RKF-N, RKP-N, RKM-N, RKP32N
#Grup produk P115818358
Spesifikasi
| A | 21.5 |
|---|---|
| B | 19.5 |
| C | 6.5 |
| D | 32 |
| D1 | 15 |
| Dimension D3 (mm) | With flange: 38 |
| Dimension H (mm) | With flange: 32.5 |
| Dimensions d (mm) | (H7)6 |
| E | 9 |
| F | 5.5 |
| Flange | With flange |
| H | 26.5 |
| Nominal Size of Screw | M4 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Made of phenolic resin |
| m | M4x0.7 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The center cap can be removed by pushing in the outer edge. Using the product under high temperature or humidity conditions may cause the material properties of the resin to deteriorate. The center cap will be packaged separately to protect it from scratches and dirt during transportation, so please assemble it yourself before use. This product complies with the RoHS directive.
