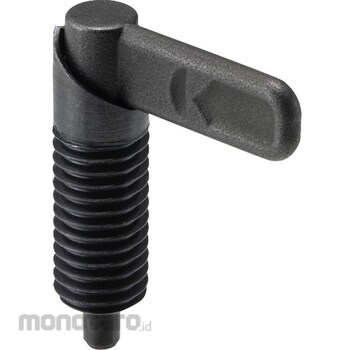

IMAO Plunger Index Plunger (Nose Lock Type) GDX-N GDX16L-8N
#Grup produk P115814592
Spesifikasi
| Dimension A (mm) | 2.3 |
|---|---|
| Dimension B (mm) | 4.8 |
| Dimension D (mm) | 16 |
| Dimension L (mm) | 61.2 |
| Dimension L1 (mm) | 32 |
| Dimension M (mm) | M16x2 |
| Dimension R (mm) | 40 |
| Dimension S (mm) | 10 |
| Dimension W (mm) | 24 |
| H(mm) | 14.4 |
| Load (N) | Min-Max:15-35 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Made of phenolic resin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Rotate the grip 180° to retract the nose and release the position. The grip fits into the notch in the main body at the 180° position, and the nose can be securely locked in the retracted position. When removed from the notch, the nose returns to its original position due to the built-in spring; this is a hand-operated spring plunger. This product complies with the RoHS directive.
