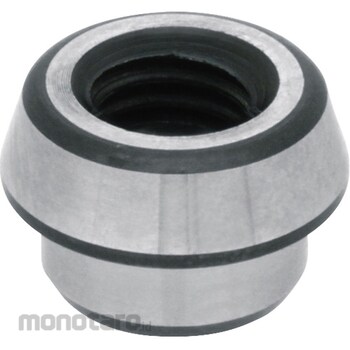

IMAO PLUFIX Tapered Bush CP157 CP157-20001S
#Grup produk P115812752
Spesifikasi
| D | 44.2 |
|---|---|
| D1 | 30(-0.02/-0.05) |
| H | 13 |
| H1 | 7.5 |
| Mass (g) | 134 |
| Type | Made of phenolic resin |
| m | M20x2.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use to attach the CP150 clamp unit (flange type) to the base plate. Use the reference type where positioning is required. Use the standard type where positioning is not required. [Plufix Features] By pulling the workpiece from below, 5-sided machining is possible in the same process without interference between the jig and tool! Repeated positioning accuracy of 5 μm is achieved by taper 2-sided restraint! Tool interference is eliminated, allowing for significant consolidation of machining processes. High-precision subplate replacement can be performed quickly.
Feature
Specification*Base plate hole processing Lf: 8 *Base plate hole processing d (H7): 30
