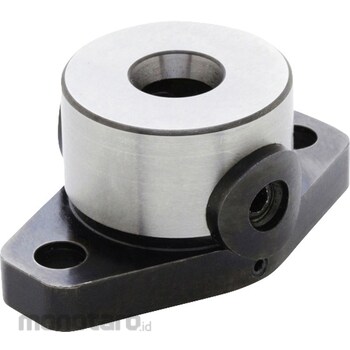

IMAO PLUFIX Clamp Unit (Flange Type) CP150 CP150-20100
#Grup produk P115812716
Spesifikasi
| D1 | 55 |
|---|---|
| Dimension H (mm) | (±0.01)100 |
| Dimensions d | 21 |
| H1 | 50 |
| H2 | 50 |
| H3 | 30 |
| L | 115 |
| Mass (kg) | 6.2 |
| P | 135 |
| Type | Made of phenolic resin |
| W | 170 |
| W1 | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
If positioning is required, use the CP157-L taper bush (standard type) for installation. If positioning is not required, use the CP157-S taper bush (standard type) for installation. [Plufix Features]By pulling the workpiece from below, there is no interference between the jig and the tool, and 5-sided machining is possible in the same process! Tapered 2-sided restraint achieves 5μm repeat positioning accuracy! Tool interference is eliminated, and machining processes can be significantly consolidated. High-precision subplate replacement can be performed quickly.
Feature
Specification*Base plate hole processing Lf: 8 *Base plate hole processing M: M20 x 2.5 *Base plate hole processing d (H7): 30
