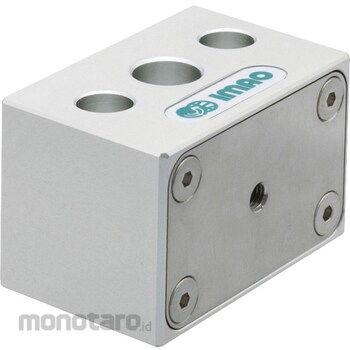

IMAO One-touch slide lock Air shaft clamper (light load) PSLC-L PSLC16-3L
#Grup produk P115809271
Spesifikasi
| Dimension H1 (mm) | 33.5 |
|---|---|
| Dimension L (mm) | 40 |
| Dimension L1 (mm) | 15 |
| Dimension M (mm) | M6 |
| Dimension P (mm) | 45 |
| Dimension W (mm) | 63 |
| Dimensions d (mm) | 16 |
| H(mm) | 40 |
| Holding Torque (N m) | 0.7 |
| Mass (g) | 300 |
| Operating Pressure (MPa) | 0.3~0.7 |
| Type | Made of phenolic resin |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Clamping is done by spring pressure and unclamping by air pressure, so there is no need to worry about a decrease in clamping force due to air leakage. ,Remote control by air and multiple simultaneous operations are possible. ,Compact design allows installation in narrow spaces. ,The low pressure specification of "PSLC-3L" can be used from 0.3MPa. [Notes] ,Clamp and unclamp operations should be performed when the shaft is stopped. It cannot be used as a brake for a moving shaft. ,Do not force a clamped shaft. ,Do not frequently operate without a shaft. ,Clamping cannot be done manually. ,The identification hole (Φ3) is a mark to distinguish "PSLC-3L" and "PSLC-5L" by appearance.
