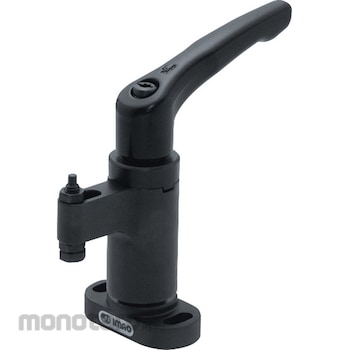

IMAO One-touch clamp Swing clamp (clamp lever type) QLSWC QLSWC-1030KL
#Grup produk P115807954
Spesifikasi
| A | 48 |
|---|---|
| B | 18 |
| C | 30 |
| Clamp Height (mm) | Flat clamp (for finished surfaces) max. time: 37 (37-41), Flat clamp (for finished surfaces) min. time: 30.5 (30.5-34.5), Point clamp (for black surfaces) max. time: 38 (38-42), Point clamp (for black surfaces) min. time: 31.5 (31.5-35.5) |
| Clamp Stroke (mm) | 4 |
| D | 30 |
| E | 122.3 |
| F | 45 |
| G | 37 |
| H | 8 |
| L | 8.4 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Made of phenolic resin |
| k | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- The clamp mechanism is screw-type, so the clamp stroke is longer than the cam type and the clamping force is increased. - It is a swing clamp that uses a clamp lever. - It is a product that complies with the RoHS directive. [Tool-free lever-operated clamp] - One-touch clamp is a clamp that can be clamped and unclamped by operating the lever without the need for tools. - Tool-less operation significantly reduces the operation time for attachment and detachment. It is particularly effective in tasks where workpieces are frequently attached and detached, and also significantly reduces setup time. - It contributes to improved workability and productivity.
