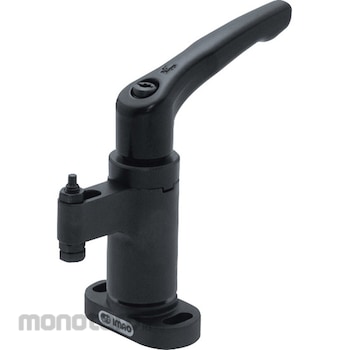

IMAO One-touch clamp Swing clamp (clamp lever type) QLSWC QLSWC-0823KR
#Grup produk P115807936
Spesifikasi
| A | 39 |
|---|---|
| B | 14 |
| C | 23 |
| Clamp Height (mm) | Flat clamp (for finished surfaces) max.: 32.3 (32.3~36.3), Flat clamp (for finished surfaces) min.: 30.3 (30.3~34.3), Point clamp (for black surfaces) max.: 33.2 (33.2~37.2), Point clamp (for black surfaces) min.: 31.2 (31.2~35.2) |
| Clamp Stroke (mm) | 4 |
| D | 23 |
| E | 97.3 |
| F | 35 |
| G | 30 |
| H | 8 |
| L | 5.3 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Made of phenolic resin |
| k | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- The clamp mechanism is screw-type, so the clamp stroke is longer than the cam type and the clamping force is increased. - It is a swing clamp that uses a clamp lever. - It is a product that complies with the RoHS directive. [Tool-free lever-operated clamp] - One-touch clamp is a clamp that can be clamped and unclamped by operating the lever without the need for tools. - Tool-less operation significantly reduces the operation time for attachment and detachment. It is particularly effective in tasks where workpieces are frequently attached and detached, and also significantly reduces setup time. - It contributes to improved workability and productivity.
