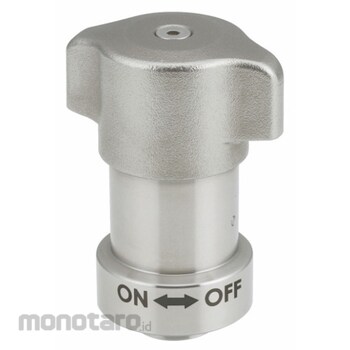

IMAO One-touch attachment/detachment wedge lock clamp strong (free approach) QCWESA QCWESA1227-16S
#Grup produk P115806991
Spesifikasi
| Clamping power (N) | 1000 |
|---|---|
| Dimension D (mm) | (-0.05/-0.10)12 |
| Dimension D1 (mm) | (h9)16 |
| Dimension Dp (mm) | 23 |
| H1 | 52 |
| H2 | 35 |
| H3 | 10 |
| Holding power (N) | 2500 |
| L | 17.5 |
| Mass (g) | 190 |
| Suitable For | Case: QCWES1225-B |
| Type | Made of phenolic resin |
| d2 | 27 |
| d3 | 35 |
| m | M2x0.4 depth 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Shaft storage type with clamping force of 1000N and 2000N . Clamping force 2,000N! . Can be used in places where the load is large and heavy. Can be attached and detached from the slide! . When OFF, the shaft is stored inside the main body, so there is no interference with the base.
