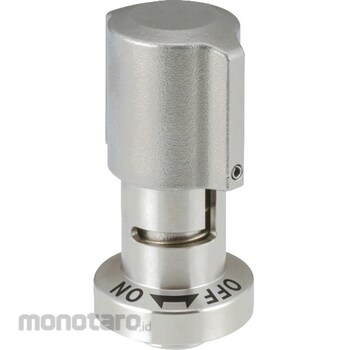

IMAO One-touch attachment/detachment wedge lock clamp (free approach) QCWEA QCWEA0625-10-SUS
#Grup produk P115806955
Spesifikasi
| Clamping power (N) | 30 |
|---|---|
| Dimension D (mm) | (-0.05/-0.10)6 |
| Dimension D1 (mm) | (h9)14 |
| Dimension Dp (mm) | 21 |
| H1 | 58 |
| H2 | 43.5 |
| H3 | 6.5 |
| Holding power (N) | 90 |
| L | 19.5 |
| Mass (g) | 114 |
| Suitable For | *Sensor-equipped case: QCBU0608-M12, QCBU0608-M12SUS *Sensor-equipped case: QCWE0625-M16-S, QCWE0625-M16-SL |
| Type | Made of phenolic resin |
| d2 | 25 |
| d3 | 28 |
| m | M2x0.4 depth 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Shaft storage type that can detect when clamping is complete with a sensor. When unclamping, the shaft is stored inside the main body, so there is no interference with the base. The wedge pushes the ball out and hits the tapered surface inside the case, drawing in the plate.
