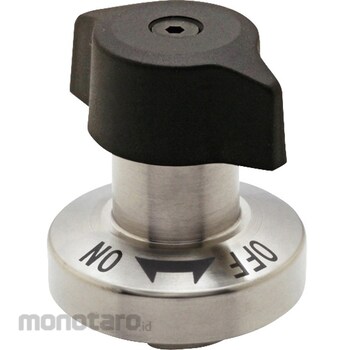

IMAO One-touch attachment/detachment thumb turn clamp (free approach) QCTHA QCTHA0525-10
#Grup produk P115806618
Spesifikasi
| Clamping power (N) | 60 |
|---|---|
| Compatible Plate Thickness (mm) | 3~10 |
| Dimension D (mm) | 1(h10)14 |
| Dimension Dp (mm) | 21 |
| Dimensions d (mm) | (-0.04/-0.08)5 |
| H1 | 30 |
| H2 | 20 |
| H3 | 6.5 |
| L | 15.5 |
| Mass (g) | 40 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Type | Made of phenolic resin |
| d2 | 25 |
| d3 | 25 |
| m | M2x0.4 depth 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Shaft storage type without interference. When unclamping, the shaft is stored inside the main body, so there is no interference with the base. The pin hits the cam surface inside the cam case, compressing the spring and drawing in the plate. Complies with the RoHS directive. [One-touch attachment/detachment] Fastening parts that replace bolts No bolts! No hassle! Improves equipment setup One-touch attachment/detachment is a fastening part used instead of a bolt. Attachments and jigs can be attached and detached quickly without using tools.
