A hand-operated index plunger that retracts the nose by pulling the knob for easy depositioning, and returns the nose to its original state by the built-in spring when you release it.
The nose lock type can be locked (fixed) with the nose retracted by rotating 90 ° with the knob pulled.
Relief processing is applied to the threaded part.
IMAO Index plunger (short type nose lock type)
#Grup produk P115798559
Spesifikasi

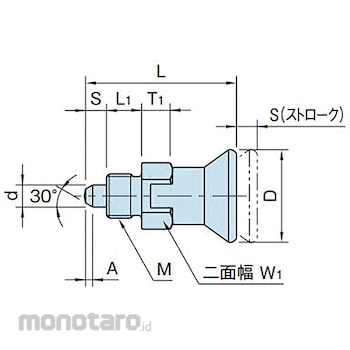

| Dimension A (mm) | 0.8 |
|---|---|
| Dimension D (mm) | 14 |
| Dimension L (mm) | 25.5 |
| Dimension L1 (mm) | 6 |
| Dimension M (mm) | M6x0.75 |
| Dimension S (mm) | 3.5 |
| Dimension T1 (mm) | 5 |
| Dimension W1 (mm) | 8 |
| Load (Minimum to Maximum) (N) | 4~10 |
| Mass (g) | 3.5 |
| Material (coil Spring) | SUS302WPA |
| Material (knob) | polyamide |
| Nut | Single nut |
| Stroke (mm) | 3.5 |
| Type | Nose lock type |
