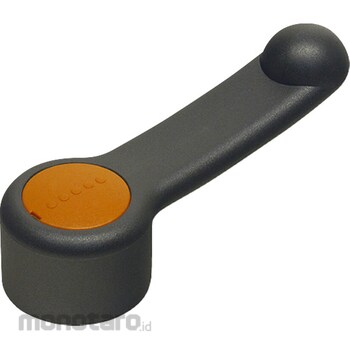

IMAO Ergocontrol lever ECL
#Grup produk P115796278
Spesifikasi
| Cap Material | polyamide |
|---|---|
| Dimension A (mm) | 20 |
| Dimension B (mm) | 24 |
| Dimension D (mm) | 32 |
| Dimension D1 (mm) | 15 |
| Dimension D2 (mm) | 22.5 |
| Dimension H (mm) | 35 |
| Dimension H1 (mm) | 24 |
| Dimension H2 (mm) | 24 |
| Dimension R (mm) | 67 |
| Dimensions d (mm) | 6 |
| Dimensions d1 (mm) | 16 |
| Dimensions d2 (mm) | 10 |
| Dimensions d3 (mm) | 4 |
| Mass (g) | 50 |
| Material (Insert Nut) | SUM24L triiron tetroxide film |
| Material (Lever) | Polyamide (glass fiber reinforced) matt black |
| Operating Temperature Range (°C) | -30~130 |
| Type | color cap |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The gentle curve of the arm and the hemispherical finish on the tip give a gentle grip for smooth and powerful operation. The front of the boss hole can be easily covered with the accessory cap after installation. The pilot hole has been machined. It can be used with a snap method by attaching the ball and spring (sold separately). Also, the boss has a groove for a stop pin that limits the lever operating angle to an angle of 125±1°. If used under high temperature or high humidity conditions, the material properties of the resin may deteriorate. You can specify the color of the cap, so please specify the color code. The cap is packed separately to protect it from scratches and dirt during transportation, so please assemble it yourself.
