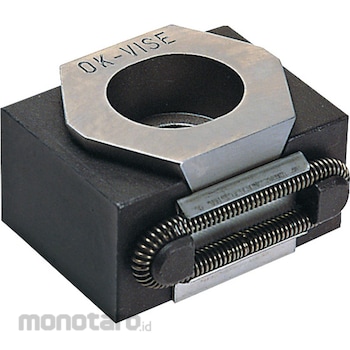

IMAO Clamp & Stopper OK Vise (Single Type) BK2, DK2, FK2 DK2-VT
#Grup produk P115789117
Spesifikasi
| Compatible Bolt | (For use at T-groove) M12-30L (For use at Neji-gae) M12-30L |
|---|---|
| H | 22 |
| H1 | 4 |
| H2 | (Min) 5 (Max) 14 |
| L | (Min) 42 (Max) 49 |
| Mass (g) | 180 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| S | 2 |
| Type | Made of phenolic resin |
| W | 41 |
| W1 | 30 |
| l1 | (When using T-slot) 25 (When using screw hole) 20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The V-shaped wedge has a multiplying effect, so it can easily obtain a strong clamping force by simply tightening with a hexagonal wrench. After tightening, the reaction forces of both jaws are combined and applied to the V-shaped wedge, so the jaws can maintain their strength and durability despite their thinness. This product complies with the RoHS directive.
