Due to the wedge structure, a clamping force that is approximately twice that of an air cylinder of the same size can be obtained.
Even if the air pressure drops due to air leakage, the wedge structure prevents an immediate drop in clamping force.
Since there is an air hole for seating confirmation, you can check the seating of the work using the seating confirmation switch.

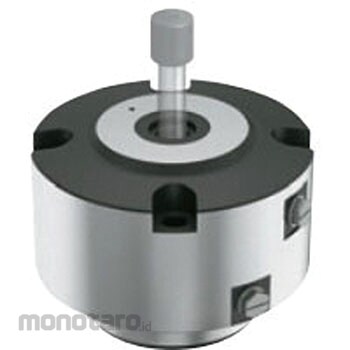

IMAO Air retract clamp
#Grup produk P115778272
Spesifikasi
| Dimension H (mm) | 50(±0.01) |
|---|---|
| Dimension H1 (mm) | 47 |
| Dimension H2 (mm) | 35 |
| Dimension H3 (mm) | 31 |
| Dimension H4 (mm) | 19 |
| Dimension H5 (mm) | 10 |
| Dimension M | Rc1/8 |
| Mass (g) | 3200 |
| Material (Main Unit) | S45C |
| Material (Piston) | SCM440 |
| O-Ring | P4 |
| Operating Pressure (MPa) | 0.3~1 |
| Surface Treatment (Main Unit) | Iron oxide film / polishing finish |
