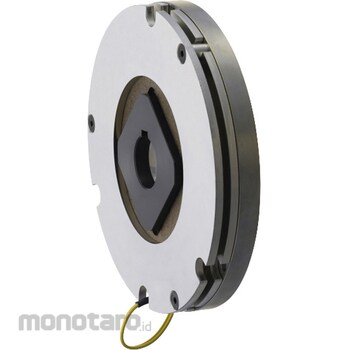

Miki pulley Thin non-excitation actuated brake BXR type BXR-14-20-038-24V-28DIN
#Grup produk P115767470
Spesifikasi
| Coil Capacity (W) | (at20°C)31 |
|---|---|
| Coil Current (A) | (at20°C)1.29 |
| Coil Voltage (V) | (at20°C)24 |
| Dimension A (mm) | [Radial direction] 167.5 |
| Dimension B (mm) | [Radial direction] 158 |
| Dimension C (mm) | [Radial direction] 166 |
| Series | BXR |
| Size | 14 |
| Static Friction Torque (N m) | 38 |
| Type | For retention, splined rotor hub |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- An electromagnetic brake that operates by the force of a spring when de-energized.
- Ultra-thin design that is 2/3 of conventional designs. The lead wire outlet has also been improved to eliminate protrusions, making it possible to make the device more compact.
- Low inertia rotor. While ensuring sufficient strength, we have succeeded in overwhelmingly reducing the weight and drastically reducing wear caused by idling.
- Minimum backlash. The backlash of the spline hub type is 0.2° to 0.5°.
