- An electromagnetic brake that operates by the force of a spring when de-energized.
- Specially designed to match the specifications and dimensions of small servo motors 40, 60, and 80.
- Low inertia rotor. While ensuring sufficient strength, we have succeeded in overwhelmingly reducing the weight and drastically reducing wear caused by idling.

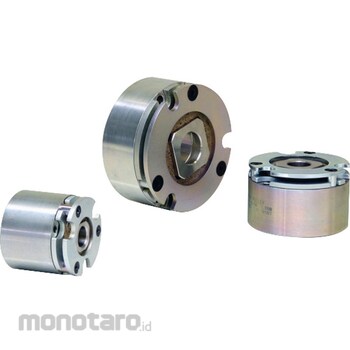

Miki pulley Non-excitation actuated brake BXW-R BXW-03-10R-24V-11
#Grup produk P115764534
Spesifikasi
| Coil Capacity (W) | (at20°C)7.2 |
|---|---|
| Coil Current (A) | (at20°C)0.3 |
| Coil Voltage (V) | (at20°C)24 |
| Dimension A (mm) | [Radial] 48 |
| Dimension B (mm) | [Radial direction] 42 |
| Mass (kg) | 0.3 |
| Series | BXW |
| Size | 3 |
| Static Friction Torque (N m) | 1.3 |
| Type | For servo motors |
