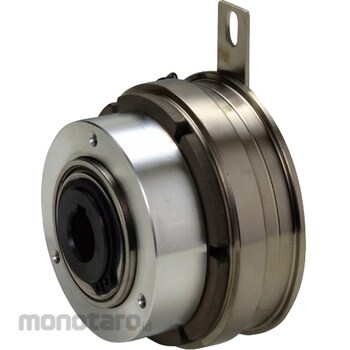

Miki pulley Excitation clutch CSZ type (one-touch mounting type) CSZ-05-35
#Grup produk P115745070
Spesifikasi
| Dimension A1 (mm) | Radial direction: 50 |
|---|---|
| Dimension A2 (mm) | Radial direction: 47 |
| Dimension A3 (mm) | Radial: 28 (0/-0.009) |
| Dimension B (mm) | Radial: 54 |
| Dimension C (mm) | Radial direction: 50 |
| Dimension G1 (mm) | Radial direction: 28 |
| Dimensions (mm) | Shaft hole bH9: 3 (+0.030/0), shaft hole d1H7: 10 |
| Dimensions d2 (mm) | Shaft hole 10.2 |
| Size | 5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- The clutch is placed between the drive and load parts to accurately connect and disconnect the power.
- By applying this basic usage method and combining the clutch and brake, various applications are possible, such as stepped speed change mechanisms, forward/reverse rotation switching, positioning/indexing, and inching motion.
- Another attractive feature is that it is easy to control and maintain.
- The friction surface gap required for clutch operation is adjusted and pre-assembled.
- No need to adjust the gap or concentricity/eccentricity, greatly reducing installation time.
