- Basic model of power supply for electromagnetic clutch/brake control with rated voltage DC45/90/180V. Supports input voltages of AC100V, AC200V, and AC400V.
- Just connect and input any voltage specification, AC100V, AC200V, or AC400V, and you will get the DC voltage required to operate the electromagnetic clutch/brake. Half-wave/full-wave rectification power supply
- We have half-wave rectification, full-wave rectification, and other various power supply specifications, and they are small and lightweight. Terminal block type
- Terminal block type that is easy to connect, and comes with a DC cutoff terminal. Compliant with RoHS Directive
- Complies with the EU's RoHS Directive, which prohibits the use of six substances including mercury and lead, and is regulated by the EU's hazardous chemicals regulation "RoHS Directive."

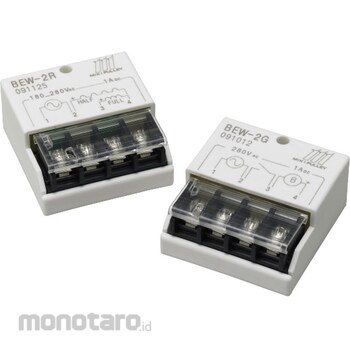

Miki pulley Electromagnetic clutch/brake power supply unit BEW model BEW-4R
#Grup produk P115736498
Spesifikasi
| Adaptation | Clutches and brakes in general |
|---|---|
| Input Voltage | AC400V |
| Input Voltage Range (V) | AC360~480 |
| Output Capacity | [Full wave ambient temperature 20°C] 252W (AC400V) [Full wave ambient temperature 60°C] 180W (AC400V) [Half wave ambient temperature 20°C] 90W (AC400V) |
| Output Current | [Ambient temperature 20°C] DC 0.7A [Ambient temperature 60°C] DC 0.5A |
| Output Voltage | [Half wave] DC180V (AC400V) [Full wave] DC360V (AC400V) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
