- This is a small power supply unit for non-excitation brakes with a rated voltage of DC45V/90V/180V.
- Just connect and input to obtain the DC voltage required for non-excitation brake operation.
- This small and thin power supply unit can be installed anywhere. In addition, the mounting part is movable, so the input and output direction can be freely set.
- A tab terminal is used on the output side to connect the non-excitation brake, saving space and reducing labor for connection.
- The entire case is molded with resin, so it can be used in dusty environments.
- Complies with the EU's RoSH Directive, which prohibits the use of six substances including mercury and lead.

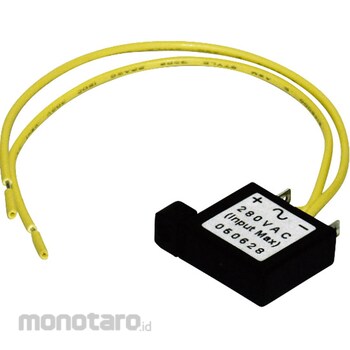

Miki pulley Electromagnetic clutch/brake power supply unit BEM-T type BEM-4T-240L
#Grup produk P115736054
Spesifikasi
| Input Voltage | AC100/200/400V |
|---|---|
| Lead Wire Length (mm) | 240 |
| Output Capacity | 126W/AC400V |
| Output Current | DC0.7A |
| Output Voltage | (AC100V)DC45V(AC200V)DC90V(AC400V)DC180V |
