A compact, large-capacity, wide-range power supply device that can be used for all electromagnetic clutches and brakes with a rated voltage of DC45 / 90 / 180V.
Wide input / output is possible.
The DC voltage required for the operation of the electromagnetic clutch / brake can be obtained simply by connecting and inputting any voltage specification of AC100V, AC200V, AC400V. Furthermore, since the output of half-wave rectification / full-wave rectification can be supported by changing the connection method, it is possible to support electromagnetic clutches and brakes with various specifications only with this Dengen Souchi.
It is a terminal block type that is easy to connect, and it is a simple power supply device with only the input side and output side set, and it is compact and has a large capacity.
It complies with the EU's RoHS Directive, which prohibits the use of six substances such as mercury and lead.

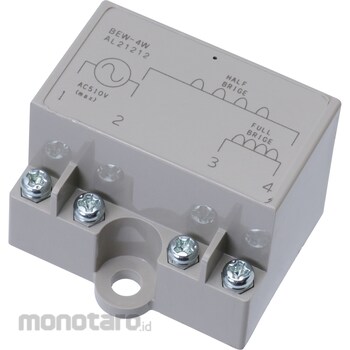

Miki pulley Electromagnetic clutch / brake power supply unit BEW-W type (full wave / half wave common, large capacity)
#Grup produk P115735851
Spesifikasi
| Input Voltage (V) | AC100/200/400 |
|---|---|
| Insulation Resistance | 100MΩ at DC500V mega |
| Isolation Voltage | AC2200V 50Hz 1 minute |
| Mass (kg) | 0.045 |
| Operation Environment | -20 ~ + 60 °C / 10 ~ 90% RH (no condensation) |
| Output Capacity | When ambient temperature is 20 °C: 1080W / AC400V (full wave), when ambient temperature is 60 °C: 900W |
| Output Current | When the ambient temperature is 20 °C: DC3.0A, When the ambient temperature is 60 °C: DC2.5A |
| Output Voltage | DC45V/DC90V/DC180V/DC360V,(AC100V/AC200V/AC400V) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Suitable For | Non-excitation brake |
