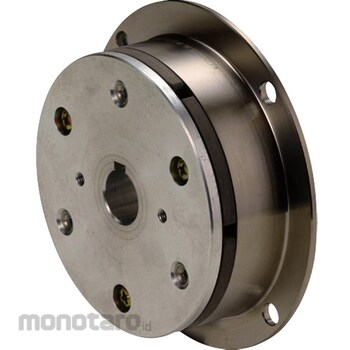

Miki pulley Electromagnetic brake BSZ type (one-touch mounting type) BSZ-08-12
#Grup produk P115735693
Spesifikasi
| Dimension A (mm) | [Radial direction] 80 |
|---|---|
| Dimension C1 (mm) | [Radial direction] 100 |
| Dimension C2 (mm) | [Radial direction] 90 |
| Dimension C3 (mm) | [Radial direction] 42 |
| Dimension F (mm) | [Radial direction] 25 |
| Dimension L (mm) | [Axial] 28.5 |
| Dimension M (mm) | [Axial direction] 8 |
| Dimension P (mm) | [Axial] 8.3 |
| Dimension T (mm) | [Axial] 2.6 |
| Dimension Y (mm) | [Axial direction] 6 |
| Size | 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Brakes are used to slow down and stop load inertia and mechanical systems, and to hold them stationary.
- By applying this basic usage method and combining clutches and brakes, various applications are possible, such as stepped speed change mechanisms, forward/reverse rotation switching, positioning/indexing, and inching motion.
- Another attractive feature is that they are easy to control and maintain.
- The friction surface gap required for brake operation is adjusted and the product is pre-assembled.
- No need to adjust the gap or adjust the concentricity/eccentricity, greatly reducing installation time.
