Informasi Produk
Description

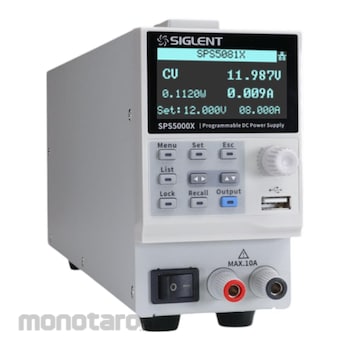

The Siglent SPS5041X is a single channel programmable Switching DC Power supply that provides a 0-40V 0-30A range with a max output power of 360W. The SPS5000X series is a ideal choice for a variety of demanding markets, including Commercial Industrial, Education, Energy and Power Generation, laboratory general testing, the LED lighting industry, and automotive electronics.
Feature
SPS5000X Series Main FeaturesRated Output Voltage 40V, 50V, 80V, 160V
Rated Output Power 180W, 360W, 720W, 1080W
Wide range of output voltage and current, high efficiency power supply
CV, CC priority mode selection, better protection of equipment under test
Load transient recovery time (Load change from 50~100%) <1ms
Adjustable slew rate of output voltage and current
Setting and read back resolution: 1 mV, 1 mA
User enabled internal output discharge circuit to accelerate the down programming of the output voltage
Remote Voltage Sensing
List function up to 50 steps; can be created from the front panel or by importing list sequence files from a USB memory device
External analog voltage and resistor control of voltage or current output
External voltage and current monitoring output
OVP, OCP, LPP, OTP protection.
2.4-inch OLED high brightness liquid crystal display 170-degree viewing angle
Standard Interface USB Interface LAN Analog Control Interface
Optional USB-GPIB module
1/2, 1/3, 1/6 rack mount size
Embedded Web Server offers remote control through a web browser without the need for the driver or software
