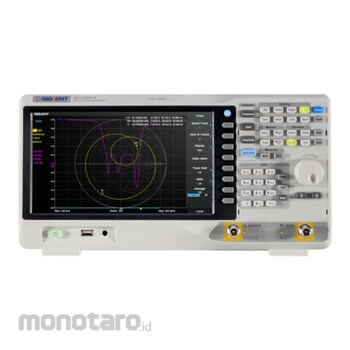

Siglent Real Time Spectrum Analyzer
#Grup produk P115733057
Sebelum PPN:
Rp209.999.900 - Rp479.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| 100% POI | 7.20 μs |
|---|---|
| Advanced Measurements | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
| Amplitude Accuracy (dB) | < 0.7 |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) |
| EMI Measurement | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
| Modulation Analysis | AM, FM, ASK, FSK, MSK, PSK, QAM |
| RTSA Measurement | Density, Spectrogram, 3D, PvT |
| Real Time Band Width | 25 - 40 (Option) |
| Reflection Measurement | VSWR measurement using Reflection Bridge |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
| Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
| Resolution Bandwidth (Hz/MHz) | 1~3 |
| SSB Phase Noise (dBc/Hz) | <-98 |
| Sfdr (dB) | 60 |
| Third-order Intercept (dBm) | +14 (TOI) |
| Touch Screen | Multi Touch, Mouse and Keyboard supported |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Siglent SSA3032X-R 3.2GHz Real Time spectrum analyzer is a powerfull and flexible tool for complex RF pectrum and signal analysis. SSA3000X-R Series included features VNA and DTF functions at no charge
Feature
The SIGLENT SSA3032X-R Real Time spectrum & vector network analyzer has a a capability of 40 MHz analysis bandwidth and 7.2 μs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. The Siglent SSA3032X-R also provides standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI measurement. Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.Produk Terpopuler
