Siglent SRF5030T Near Field Probe Set for EMC Pre-Compliance
The Siglent SRF5030T is a professional near-field probe set for locating EMI and radiated emissions on PCBs and electronic assemblies. Covering 300 kHz to 3 GHz, it includes H-field and E-field probes for fast EMC pre-compliance testing and RF debugging when used with a spectrum analyze
Siglent Near Field Probe Set
#Grup produk P115732739
Spesifikasi
| Connector | SMB (M) |
|---|---|
| Frequency Range (kHz-GHz) | 300 – 3 |
| Included Adapter | SMA (F) to N (M) |
| Included Cable | SMB (F) to SMA (M), 100 cm |
| Included Probes | H20, H10, H5 (H-field) + E5 (E-field) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Siglent SRF5030T Near Field Probe Set – EMC Pre-Compliance & Debugging up to 3 GHzThe Siglent SRF5030T Near Field Probe Set is a professional EMC troubleshooting solution designed for radiated emissions testing, EMI debugging, and RF interference analysis. The probe set includes magnetic field (H-field) and electric field (E-field) probes, optimized for locating electromagnetic interference sources directly on PCBs, cables, connectors, and electronic assemblies.
Operating in the frequency range from 300 kHz to 3 GHz, the SRF5030T probes allow engineers to quickly identify and isolate problem areas during EMC pre-compliance testing. By scanning close to the radiation source, emissions can be detected long before formal compliance testing, reducing development time and costly redesigns .
The probe set includes multiple probe sizes to balance spatial resolution and sensitivity, making it suitable for both coarse scanning and pinpoint analysis. Shielded probe construction minimizes pickup of common-mode noise and ensures stable, repeatable measurements, even in dense circuit layouts .
The SRF5030T is typically used in combination with a spectrum analyzer and is ideal for EMC diagnostics, RF immunity investigations, and non-contact measurement of RF building blocks such as oscillators and modulators .
Key Features of the Siglent SRF5030T
Near field probe set for EMC and EMI troubleshooting
Frequency range: 300 kHz to 3 GHz
Includes H-field and E-field probes
Multiple probe sizes for optimal spatial resolution
Shielded design to reduce common-mode noise pickup
Slim probes for access between tightly spaced components
SMB connector with supplied adapter cables
Ideal for EMC pre-compliance, RF debugging, and repair diagnostics
The Siglent SRF5030T Near Field Probe Set is an essential tool for electronics engineers who need a fast, reliable, and cost-effective way to locate EMI issues before formal certification testing.

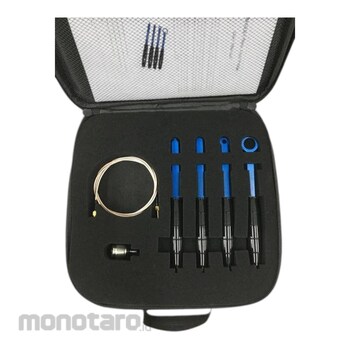

Accessoires Included:
H20 H-Field Probe (20 mm)
H10 H-Field Probe (10 mm)
H5 H-Field Probe (5 mm)
E5 E-Field Probe (5 mm)
SMB (F) to SMA (M) cable, 100 cm
SMA (F) to N (M) adapter
