Siglent Channel Logic Probe Module
#Grup produk P115731952
Sebelum PPN:
Rp12.999.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

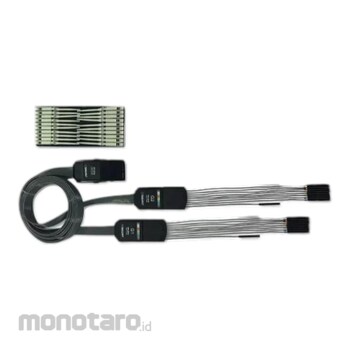

The Siglent SPL2016 Logic Probe Module turns compatible Siglent oscilloscopes into full Mixed Signal Oscilloscopes (MSOs) with 16 digital channels. Designed for high-speed digital signal capture (up to ~500 MSa/s), it’s perfect for embedded system debug, logic-bus decoding, and mixed analog/digital designs. Fully compatible with the SDS7000A, SDS6000A, SDS6000L, SDS5000X, SDS3000X HD, SDS2000X HD, and SDS2000X Plus series. With included accessories and firmware license support, the SPL2016 gives engineers the power and flexibility needed for modern digital electronics work.
Feature
Key Features16 digital input channels with independent thresholds
Supported logic families: TTL, CMOS, LVCMOS 3.3 V / 2.5 V, plus user-defined settings
High input impedance (100 kΩ || ~18 pF), ±50 V peak input tolerance【web†siglent.eu】
Detects pulses as short as ~3.3 ns
Seamless compatibility with SDS2000X HD, SDS2000X Plus, SDS3000X HD, SDS5000X, SDS6000L, SDS6000A, and SDS7000A oscilloscopes
The Siglent SPL2016 is a 16-channel logic probe designed for use with Siglent oscilloscopes that support mixed-signal analysis. It provides fast and accurate digital signal acquisition with up to 500 MSa/s sampling rate, making it ideal for debugging embedded systems, digital circuits, and serial protocols.
Compact and easy to connect, the SPL2016 expands your oscilloscope into a powerful MSO (Mixed Signal Oscilloscope), enabling simultaneous analysis of analog and digital signals. With deep memory and advanced triggering options, engineers can easily capture, decode, and troubleshoot complex designs.
Perfect for electronics engineers, embedded developers, and test labs, the SPL2016 logic probe is the cost-effective solution for advanced digital debugging.
