Single Phase Current Monitoring Relay
Current monitoring relays to monitor single phase AC currents and DC currents against the set threshold value for undershoot and overshoot.
A current monitoring relay can differ with their measuring ranges and supply voltage types.
Features and Benefits
Real effective value measurement
Applicable for frequencies with 40-500Hz AC and DC
All devices can be digitally set and have an LCD display, a fault memory can be switched on
Simultaneous monitoring of overcurrent and undercurrent over the complete measuring range
Supply voltage 24-240Vac/dc
Starting by-pass time 0.1 -20 secs.
Off delay 0.1 - 20 secs.
Contacts 1 C/O
Product Application Information
Overcurrent and undercurrent monitoring
Monitoring the functionality of electrical loads
Open-circuit monitoring
Threshold switch for analog signals from 4 mA to 20 mA

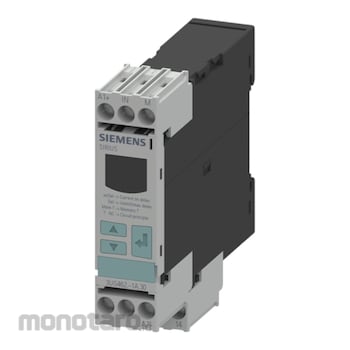

SIEMENS Digital Monitoring Relay
#Grup produk P115723582
Spesifikasi
| Contact Configuration | SPDT |
|---|---|
| Current Range (A) | 0.05 to 10 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Dimensions (mm) | 91 x 22.5 x 92 |
| Electrical Phase | 1 |
| Height (mm) | 92 |
| Length (mm) | 91 |
| Monitoring Application | Current |
| Mounting Type | DIN Rail |
| Operating Temperature (°C) | -25 to 60 |
| Series | 3UG4 |
| Standards Met | CCC, CE, EAC, UL |
| Terminal Type | Screw |
| Time Delay (s) | 0.1 - 20 |
| Width (mm) | 22.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
