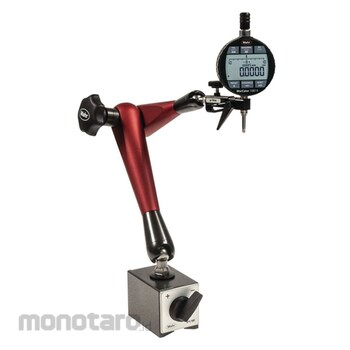

MAHR Measuring Tripod with Magnetic Base
#Grup produk P115718386
Spesifikasi
| Adhesive Force Prism (N) | 800 |
|---|---|
| Base Surface (mm) | 60x50x55 |
| Dimensions a (mm) | 399 |
| Dimensions b (mm) | 287 |
| Dimensions d (mm) | 8 |
| Dimensions j (mm) | 172 |
| Dimensions k (mm) | 115 |
| Dimensions l (mm) | 49 |
| Fine Adjustment Range (mm) | 2 |
| Mounting Hole | 8H7 |
| Projection Maximum (mm) | 287 |
| Total Height (mm) | 399 |
| V-Block For Shaft Diameter | 6-120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- 3D jointed arm, can reach any position within the operating range- Easy positioning of all three joints with a securely fixed handle
- Very sturdy component, for excellent stability and accuracy
- Maintenance-free mechanical clamping system
- Black anodized arm components made from high-quality light alloy
- Dial indicator holder with 8 mm mounting bore and dovetail for dial test indicator measuring devices
- Fitted with zero-play micro-precision adjuster
- Very easy to adjust, excellent repeatability
- Ideal for measuring instruments with ?m resolution
- Very powerful switching magnet
