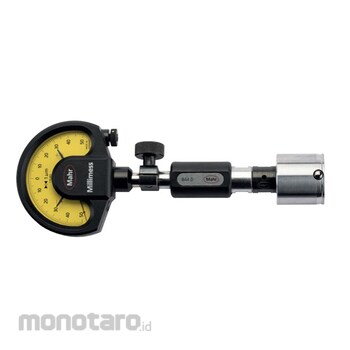

MAHR Indicating Plug Gage
#Grup produk P115718289
Spesifikasi
| Design | Standard |
|---|---|
| Dimensions a (mm) | 15 |
| Dimensions b (mm) | 39 |
| Dimensions c (mm) | 26 |
| Dimensions e (mm) | 3.5 |
| Dimensions g (mm) | M10x1 |
| Hysteresis fu (µm) | 0.4 |
| Linearity Deviation Fe (%) | 1 |
| Linearity Deviation Fe (µm) | min. 1 |
| Manufacturing Tolerance (mm) | -0.0.2/-0.05 |
| Measuring Span (mm) | 0.2 |
| Nominal Size (mm) | 16.001-25.000 |
| Repeatability fw (µm) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
• Measuring head has a hardenedchromium plated cylinder guide
and carbide tipped anvils
• The carbide expanding pin
transfers radial movement to
indicating instrument
• Constant measuring force as a
result of built-in spring,
eliminating user influence
• Extensive modular system is
composed of measuring head,
holder, depth extension, Right
angle attachments and depth
stops
