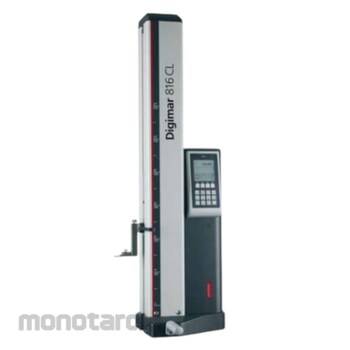

MAHR Height Measuring Instrument

Measuring system
• Excellent accuracy and reliabilty due to the optical incremental
measurement system with the double reader head
• Dynamic probing system enabling high repeatability
• Air bearings system for light and smooth movement
• Precise measuring head on stainless steel guideways
• Motorized measuring carriage simplifies measurement runs
• Temperature compensation with an integrated temperature sensor
• Probe constant remains after the instrument is switched off
• Integrated rechargeable battery with a long operating time
for mains independent measurement
Operating and display unit
• Easy to read background lit graphic LCD display
• Large and clearly defined function keys
• Operator guidance with self-explanatory icons / pictograms
• Possible to set additional zero points on a work piece
• Memory can store up to 99 measured values
• MarConnect data output, select either:
- USB
- OPTO RS232C
• Supplied with:
Height Measuring Instrument incl. operating and display unit,
Carrier 817h1,
Probe K6/51,
Setting block 817 eb,
Operating instructions,
Mains power adapter
