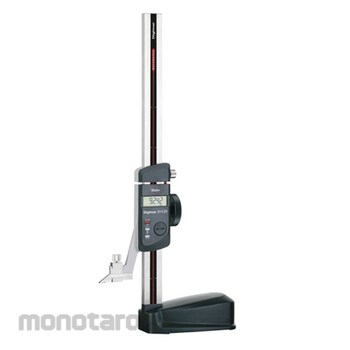

MAHR Height Measuring and Scribing Instrument
#Grup produk P115718243
Spesifikasi
| Data Interface | Opto RS-232C , Digimatic , USB |
|---|---|
| Dimensions a (mm) | 62 |
| Dimensions b (mm) | 180 |
| Dimensions c (mm) | 35 |
| Dimensions d (mm) | 580 |
| Error Limit | 40 |
| Error Limit (inch) | .0016 |
| Error Limit (µm) | 40 |
| Measuring Range (inch) | 0-14 |
| Measuring Range (mm) | 0-350 |
| Resolution (inch) | .00005 |
| Resolution (mm) | 0.001 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Up to 3 years’ battery life- Travel speed 1.5 m/s (60”/s)
- MarConnect data output: optional
USB
OPTO RS232C
Digimatic
- High contrast 12 mm high LCD display
- Sturdy, heavy-duty machine base
- Hardened and lapped contact surface which produces both a smooth and even movement
- Slide and rail are made of hardened stainless steel
- Handwheel for positioning and measuring
- Fine adjuster
- Locking screw
- Interchangeable measuring and scriber tips, carbide tipped
