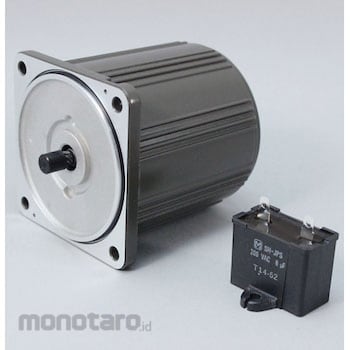

Panasonic New G Series Compact Geared Motor (Variable Speed Induction Motor)
#Grup produk P115715884
Spesifikasi
| Capacitor Capacitance (μF) | 8(200V)/8(200V) |
|---|---|
| Frequency (Hz) | 50/60 |
| Mass (kg) | 1.5 |
| Module | 0.5 |
| Number of Poles | 4 |
| Number of Teeth | 9 |
| Option | Variable speed |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 80x106.3x86 |
| Output (kW) | 0.025 |
| Power Supply | Single phase / AC |
| Rated Usage Time (minute) | Continuous |
| Shape of Shank | Gear cutting axis |
| Size (mm) | 80 |
| Starting Current (A) | 1/1 |
| Type | Induction motor |
| Type of Sign | Flange mounting |
| Voltage (V) | 100/100 |
| Wiring Connection | Lead |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Wide range (50Hz: 90 to 1400min ⁻¹ , 60Hz: 90 to 1700min ⁻¹ ) can be changed by using a speed controller. Various operations such as shifting, braking, forward/reverse, soft start, and soft down are possible. Since the tachogenerator is built in and feedback control is performed, the rotation speed does not change even if the power supply frequency changes.
