Quiet brake noise. Long life of 2 million operations. Made of non-asbestos material. Comes with a convenient manual release device. The brake can be released with a simple handle operation (one touch). Easy maintenance. Gap inspection can be easily checked from the outside without disassembly. Gap adjustment can be easily done with an adjustment washer. Same mounting dimensions as the standard motor.
* We do not deliver to private homes (detached houses / apartments). * Depending on the delivery location, the delivery date may be postponed and additional shipping charges may be incurred.

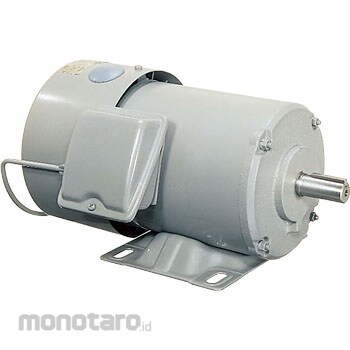

Fuji Electric NB brake motor flange mounting
#Grup produk P115715848
Sebelum PPN:
Rp9.699.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Atmosphere | No corrosive, explosive gas or steam |
|---|---|
| Braking Torque | 150/180% |
| Heat Resistance Class | 120(E) |
| Installation Altitude (m) | 1000 or less |
| Installation Location | Indoor |
| Number of Poles | 4 |
| Operating Humidity Range | 85% RH or less |
| Operating Temperature Range (°C) | -15~+40 |
| Power Supply | Three-phase |
| Protection Method | IP44 (motor section) / IP20 (brake section) |
| Rated Frequency (Hz) | 50/60 |
| Standard | JIS C 4210 Low-voltage three-phase squirrel-cage induction motor |
| Time Rating | S1 (continuous) |
| Type | Motor with electromagnetic brake |
| Type of Braking | DC non-excitation actuated type (dry type) |
| Type of Sign | Flange mounting |
| Voltage (V) | 200/200-220 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification(Terminal box mounting position) Left side when viewed from the load side, (Terminal box inlet direction) Downward
