Standardized high-brightness LED Shoko product "Pikari-kun" Can be used at 5V and 1mA with gold-plated contacts and slide structure Easy to add and replace contacts Obtained UL / CSA standard and TUV (EN standard) certification as standard product
CE mark is displayed
*From November 2022, the shape of the AH164 and 165 series has changed. please note

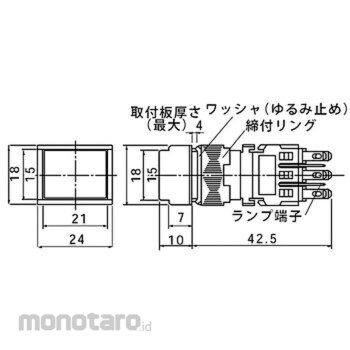

Fuji Electric Φ16 Illuminated Push Button Switch AH164 / AH165 Long Angle Flat Type
#Grup produk P115644319
Spesifikasi
| Button Shape | Long angle (flat type) |
|---|---|
| Conditional Short-Circuit Current | 1000A |
| Electrical Durability | 100,000 operations or more (AC220V 0.7A) |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC megger) |
| Rated Insulation Voltage (V) | AC/DC250 |
| Relative Humidity | 45 to 85% RH (at -5 to 40°C) (no freezing or condensation) |
| Short Circuit Protection Device | Fuse 1A |
| Standard | UL,CSA |
| Storage Temperature (°C) | -40~70 |
| Terminal Shape | Solder terminal / tab terminal |
| Type | Illuminated |
