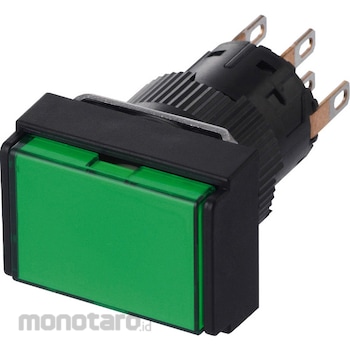

Fuji Electric Φ16 command switch, integrated contact AR16 / AF16 (thin type) (square flat type)
#Grup produk P115644212
Spesifikasi
| Button Shape | Square (flat) |
|---|---|
| Conditional Short-Circuit Current | 1000A |
| Electrical Durability | More than 100,000 times at AC220V 0.7A |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | IP65/IP65F |
| Relative Humidity | 45 to 85% RH (at -5 to 40°C) (no freezing or condensation) |
| Shock Resistance (m/s²) | Malfunction: 100, Durability: 500 |
| Short Circuit Protection Device | gG 2A (IEC60269 fuse) |
| Standard | UL,CSA,TUV,CCC |
| Storage Temperature (°C) | -40~70 |
| Terminal Shape | Solder terminal / tab terminal |
| Vibration Resistance | Resonance test: double amplitude 0.1 mm, frequency 10~55 Hz, constant vibration endurance test: double amplitude 3.0 mm, frequency 16.7 Hz |
