One-touch addition and replacement of front-tightening structure contacts and transformer unit
Two-way wiring improves work efficiency Short body depth dimension Terminal part IP2X compatible product is also available Excellent contact reliability Charging part protective cover is included as standard standard product, certified by overseas standards Buzzer is also available

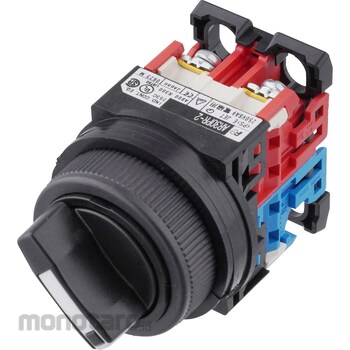

Fuji Electric Selector Switch AR30 Series
#Grup produk P115643356
Spesifikasi
| Electrical Durability | 500,000 times or more (at AC220V 6A), 1 million times or more (at AC220V 3A) |
|---|---|
| Frame | Round frame |
| Insulation Resistance (MΩ) | Between live part and ground / between different polarity live parts: 100 or more (at 500 VDC megger) |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | Operation section: IP65 (oil-proof type) |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated Insulation Voltage (V) | AC/DC600 |
| Short Circuit Protection Device | Fuse 15A |
| Storage Temperature (°C) | -40~80 |
| Terminal screw | M3.5 plus/minus screw with square washer (self-lifting type) |
| Type | Standard type |
| Vibration Resistance | Resonance test: Double amplitude 0.1mm Frequency 10-55Hz / Constant vibration endurance test: Double amplitude 3.0mm Frequency 16.7Hz |
| Withstand Voltage | Between live part and ground / between different polarity live parts: 2500 VAC for 1 minute |
