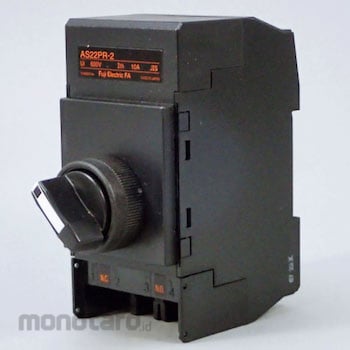

Fuji Electric Operation switch for distribution board AS22 Selector switch
#Grup produk P115642597
Spesifikasi
| Color (Knob) | Black |
|---|---|
| Contact Configuration | 1a1b |
| Electrical life | 500,000 times or more (at AC220V 6A), 1 million times or more (at AC220V 3A) |
| Insulation Resistance (MΩ) | Between the charging part and the ground / between the different pole charging parts: 100 or more |
| Mechanical life | 1,000,000 times or more |
| Operating Frequency (operation/hour) | 1800 (40% usage rate) |
| Operation Mechanism | Knob shape |
| Rated Insulation Voltage (V) | AC/DC600 |
| Return Function | Manual |
| Storage Temperature (°C) | -30~+80 |
| Terminal screw | M3.5 plus/minus screw with square washer (self-lifting type) |
| Type | selector |
| Vibration Resistance | Resonance test: Double amplitude 0.1mm Frequency 10-55Hz / Constant vibration endurance test: Double amplitude 3.0mm Frequency 16.7Hz |
| Withstand Voltage | Between charging part and ground / between opposite pole charging part: AC2500V 1 minute |
