Obtained UL / CSA standard and TUV (EN standard) certification for standard products
CE mark is displayed. The back mounting method of the operation unit eliminates the need for adjustment by panel thickness. Panel mounting is possible with the buttons and knobs already attached to the operation unit. Easy to add or replace contact units and transformer units.
Wiring from two directions is possible

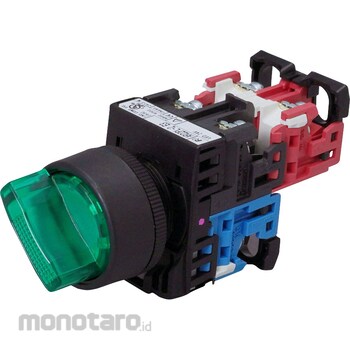

Fuji Electric Illuminated Selector Switch AR22 Series
#Grup produk P115641631
Spesifikasi
| Frame | Round frame |
|---|---|
| Insulation Resistance (MΩ) | Between live part and ground / between different polarity live parts: 100 or more (at 500 VDC megger) |

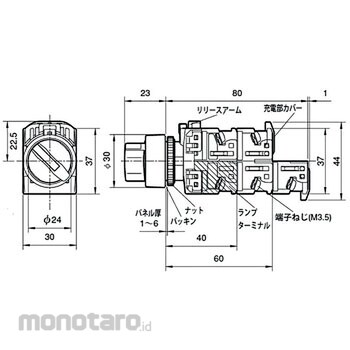

| Outer Dimensions (mm) | DIA30 (operating part) |
| Protection Class | Operation section: IP65 (oil-proof type) |
| Rated Frequency (Hz) | 50/60 |
| Standard | UL, CSA, EN standards (TUV), CE, CCC |
| Storage Temperature (°C) | -40~80 |
| Terminal Shape | M3.5 plus/minus screw with square washer (self-lifting type) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
