High-brightness LED Shoko product "Pikari-kun" is standardized. The back mounting method of the operation unit eliminates the need for adjustment by panel thickness.
Wiring from two directions is possible Achieves the industry's shortest depth dimension A charge part protective cover is attached as standard. An emergency stop push button switch that uses a trigger action mechanism is available (IEC, EN standard)
Can be used for panel cut size Φ25.5mm Standard product UL / CSA standard and TUV (EN standard) certified
CE mark is displayed

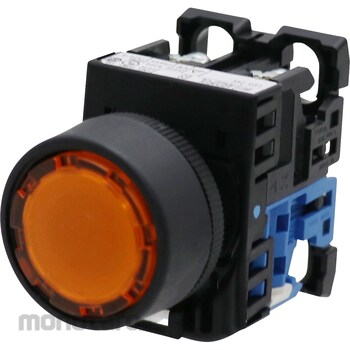

Fuji Electric Illuminated Push Button Switch AR22 Series Flat (Φ24)
#Grup produk P115641552
Spesifikasi
| Button Shape | Round (flat) |
|---|---|
| Contact Configuration | 1a1b |
| Electrical Durability | More than 500,000 times with AC220V6A; 1 million times or more at AC220V3A |
| Frame | Round frame |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC megger) |
| Light Source | LED |
| Mechanical Durability | 5 million times or more |
| Protection Class | IP65 |
| Relative Humidity | 45~85% RH (at -5~+ 40 ° C) (with no freezing or condensation) |
| Short Circuit Protection Device | Fuse 15A |
| Storage Temperature (°C) | -40~+80 |
| Terminal Shape | Screw terminal |
| Terminal screw | M3.5 plus/minus screw with square washer (self-lifting type) |
| Type | Illuminated |
| Type of Operation | Momentary |
